5/6" INSRT 0-10V 1000/1500/2000LM 5CCT
Image may not reflect selected features

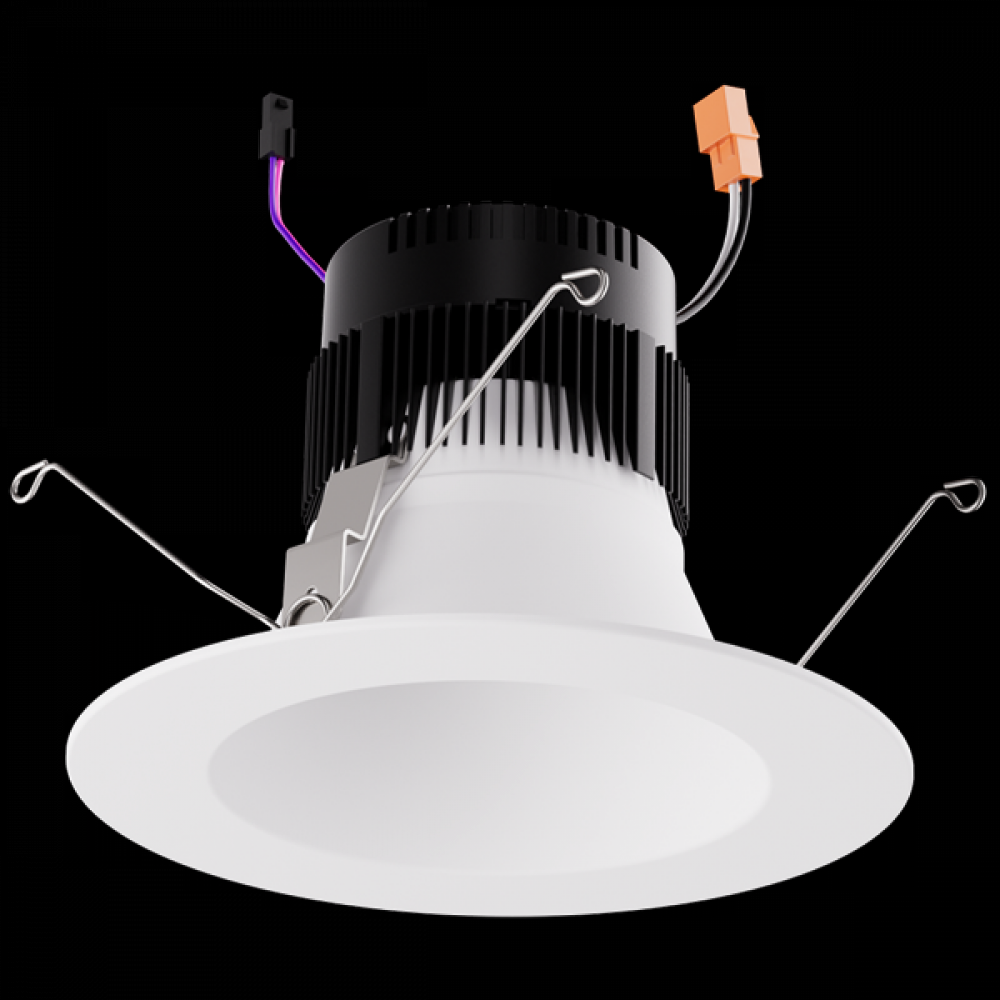

5/6" INSRT 0-10V 1000/1500/2000LM 5CCT (EL685CT5DCW) by Elco Lighting
This unique Ply System 0-10V dimmable LED Insert gives you the options you are looking for in one fixture. Engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Switch to desired Color Temperature (2700K, 3000K, 3500K, 4000K or 5000K) and Lumen Output (1000 lm, 1500 lm, 2000 lm) by using manual switch located on module. Designed to be used for New Construction, Remodel with ELCO Ply System Housings or as a retrofit with existing housings.
Downloads
Product Specification
Item #
EL685CT5DCW
Dimensions
Additional product details
Category
Recessed Ltg.
Subcategory
Recessed Lighting Trims
Finish
Chrome , Combination Finishes , White
Option
Energy Star , Title 24
Voltage
100-120
Lumens
801-1100
Kelvin
2501-3000
Wattage
13w
Finish
Chrome with White Trim
Voltage
120 V/277 V
Bulb Hours
50000
Bulb Type
LED
Kelvin
2700, 3000, 3500, 4000, 5000
Lumens / Light Output
1000, 1500, 2000
Bulb CRI
90+
Dimmable Type
0-10V
Energy Star
Yes
JA8
Yes
Title 24
Yes
Wattage
13 W, 19 W, 24 W
Manufactured By
Elco Lighting


Other Details:
  • 0-10V Dimmable
  • 120/277V Driver
  • 90+ CRI for extremely accurate color rendering
  • CA Title 24, ETL listed, ENERGY STAR, JA8-2016-E
  • Deep set LED trim reduces glare while providing even illumination
  • Life span of 50,000 hours L70
  • Lumens (Wattage): 1000 lm (13W), 1500 lm (19W), 2000 lm (24W)
  • Manual switch to choose desired Color Temperature and Lumen Output
  • Patent Pending
  • Soft white lens provides smooth lumen distribution and eliminates LED pixelation
